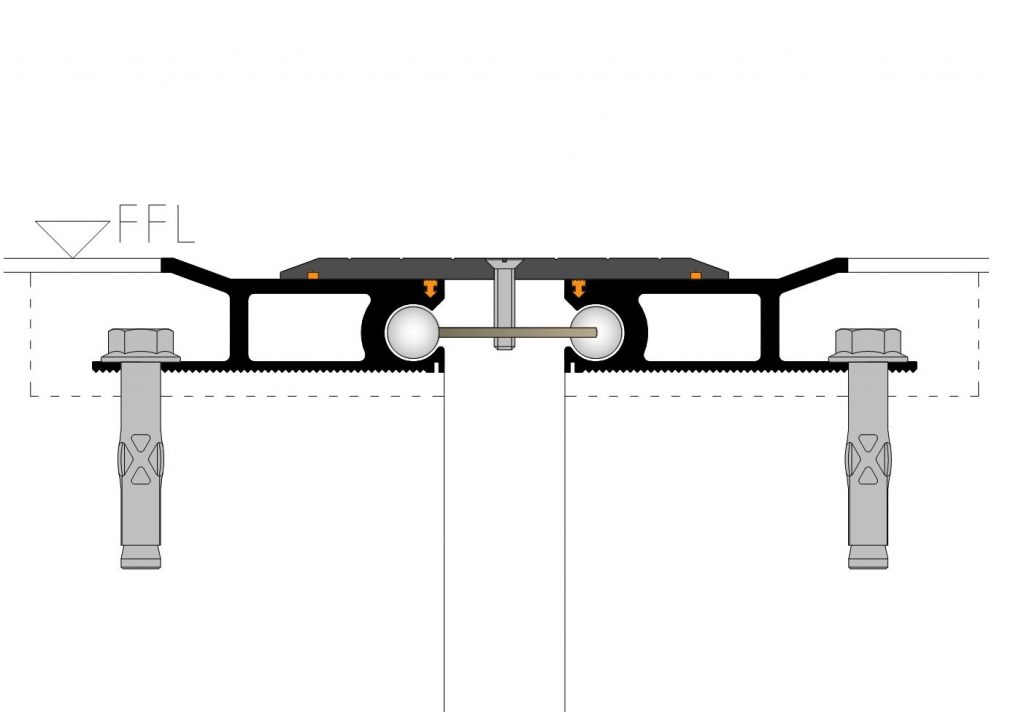

Semi Robust Aluminium Expansion Joint Cover

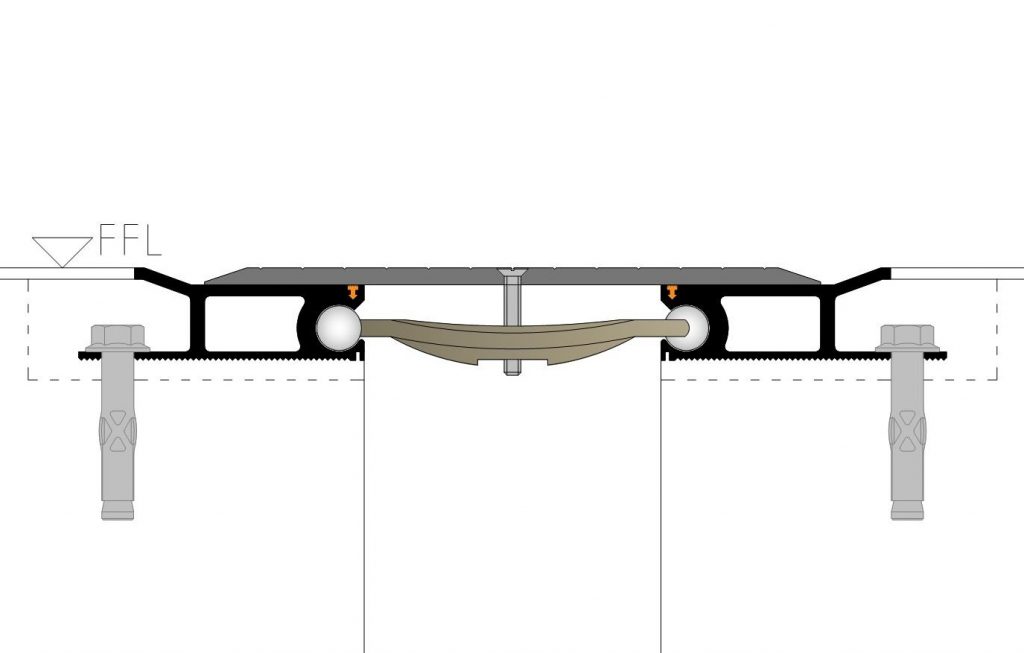

Fx CH

A heavy duty architectural floor coverplate system designed for use with heavy pedestrian, and infrequent service-equipment traffic. Suitable for use in concourse areas such as stadiums, convention centres, airport terminals. FxCH can be supplied with coverplates finished in natural and colour anodised aluminium, or bead-blasted. There is also an optional “T” bracket modification, for use in exposed agg, terrazzo, stone or paving.

Indoor and Outdoor
Light Vehicle
Multi Directional
P3 Slip Resistance Rating
Illustrations

Typical Dimensions

Performance
Multi Directional
P3 Slip Resistance Rating

Performance

  • Heavy duty
  • Concealed Fixings0
  • High Capacity
  • Bead blasted cover plate
  • Slip resistance Class V
  • Tested to AS4586 2013

Compatible Finishes

  • Tiles
  • Vinyl
  • Epoxy
  • Exposed Concrete
Material Options

Standard Finish

Anodised

Length

4.8m

Cover Plates

Mill Finish Aluminium
Clear Anodised
Stainless Steel

Cover Plate Options

Bead Blasted
Detail Drawings

Floor to Wall

Fx CHW
