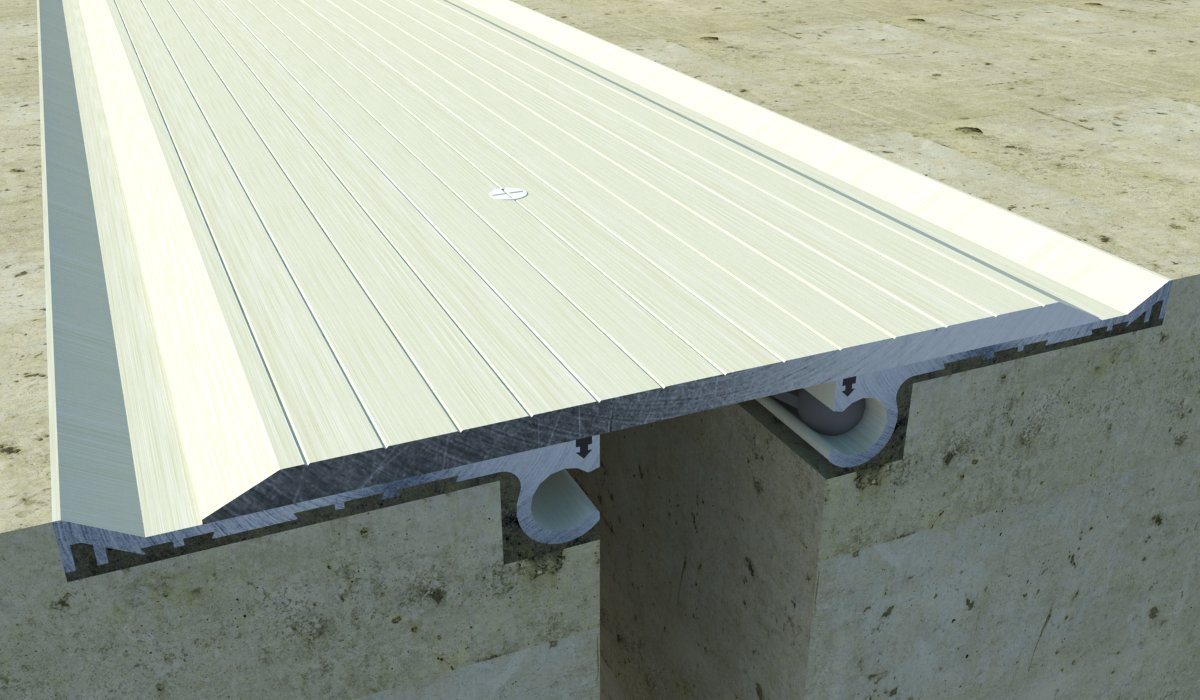

Low-Profile Heavy Duty XL Coverplate Expansion Joint

Dz HX

Revolutionary design combines slim visual width, low profile and hidden fixings. This heavy duty floor coverplate system is designed for use in polished concrete, roll-coat epoxy, tiles, vinyl and other floor finishes. Low profile and slender width allows for minimal substrate rebating. Leaves no visual grout line when applied to polish or trowel-finished concrete. Suitable for bulky-goods retail (ie Masters, Ikea) with rebating constraints. Stadiums, transit-centres, carparks and other buildings with suspended-slab concrete.

Indoor and Outdoor
Car Park
Heavy Vehicle
Multi Directional
P3 Slip Resistance Rating

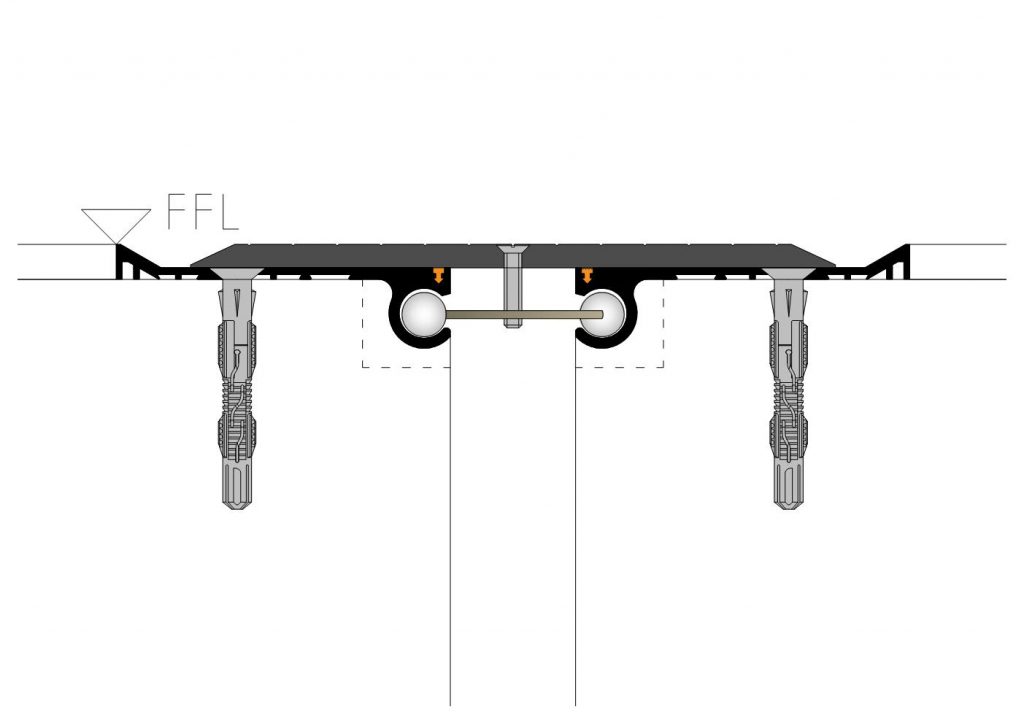

Illustrations

Typical Dimensions

Performance
Multi Directional
P3 Slip Resistance Rating

Performance

  • Extra heavy duty
  • Concealed Fixings
  • Low profile / Retrofit
  • High Capacity
  • Bead blasted cover plate Slip resistance classification V tested to AS4586 2013

Compatible Finishes

  • Tiles
  • Vinyl
  • Carpet
  • Epoxy
  • Exposed Concret
Material Options

Length

4.8m

Cover Plates

Clear Anodised
Stainless Steel

Cover Plate Options

No Bump
Bead Blasted
Detail Drawings

Aluminium Coverplate

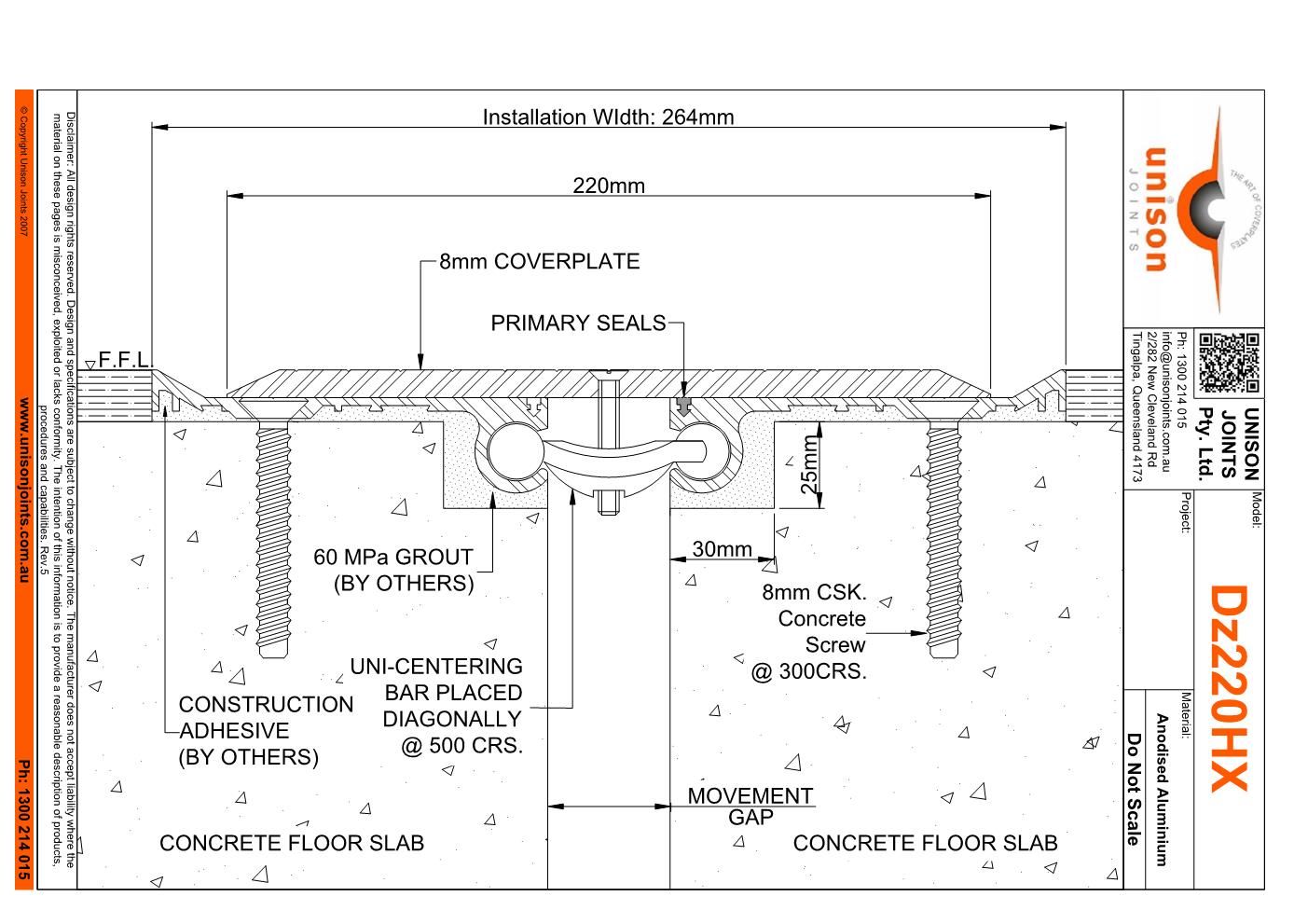

Dz220HX

Dz300HX
