Thermoplastic Gasket Vertical Wall Expansion Joint Cover
Vt S
Vertical Wall Joint Covers. The Vt S system combines extruded aluminum retainers with a durable extruded thermoplastic cover. Delivering superior performance for high-movement and seismic applications. Designed to integrate seamlessly with most wall finishes. It ensures both functionality and aesthetic appeal.
For external applications, a secondary PVC seal provides enhanced protection against environmental elements, ensuring long-lasting durability. Optional spitter boots are available to facilitate effective drainage. The thermoplastic cover comes in a range of color options to suit specific design needs, and the system can be customized for wall-corner applications (VtSJ).

Indoor and Outdoor

Multi Directional

Water Resistant

Seismic
Illustrations

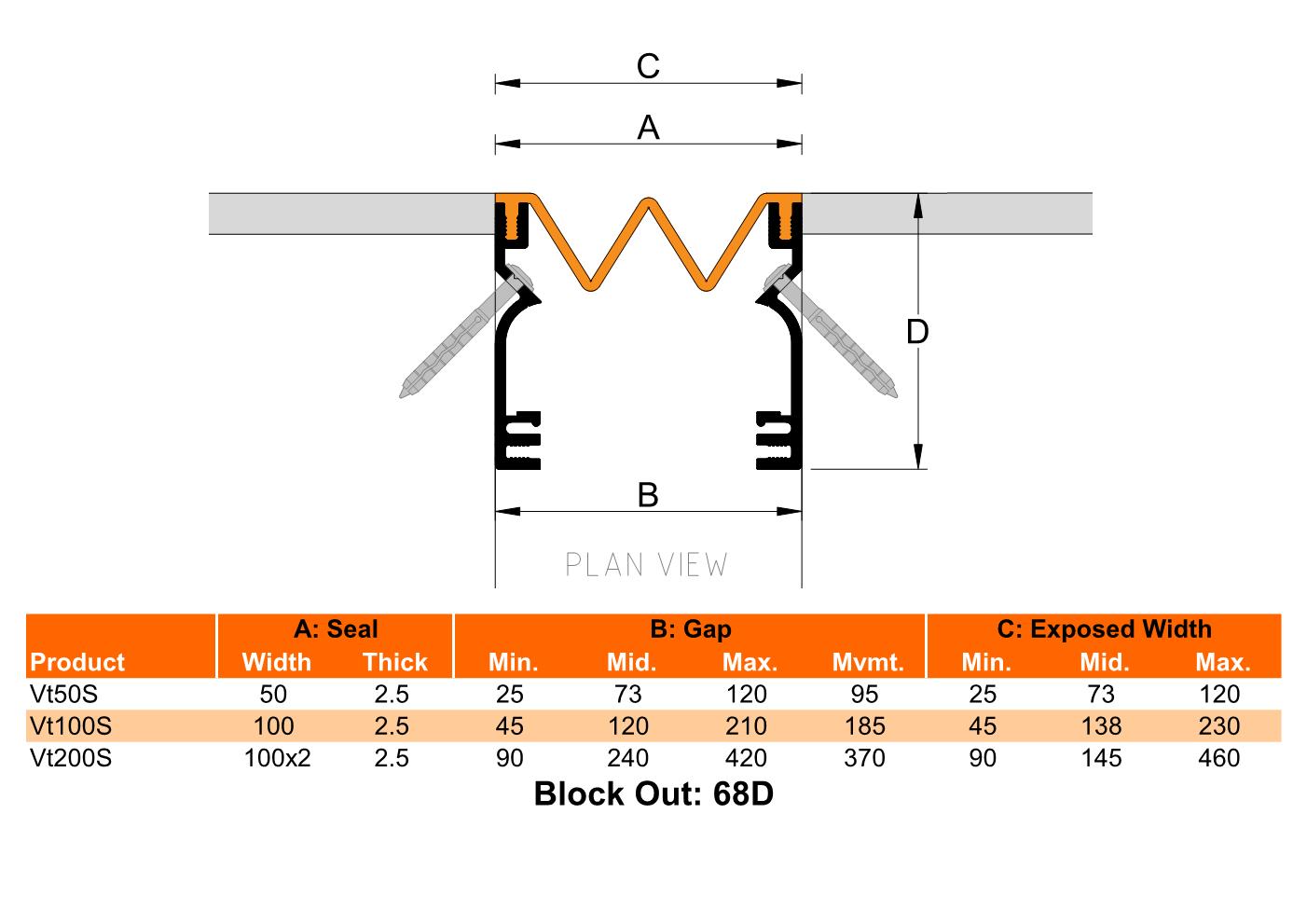

Typical Dimensions
Performance


Material Options

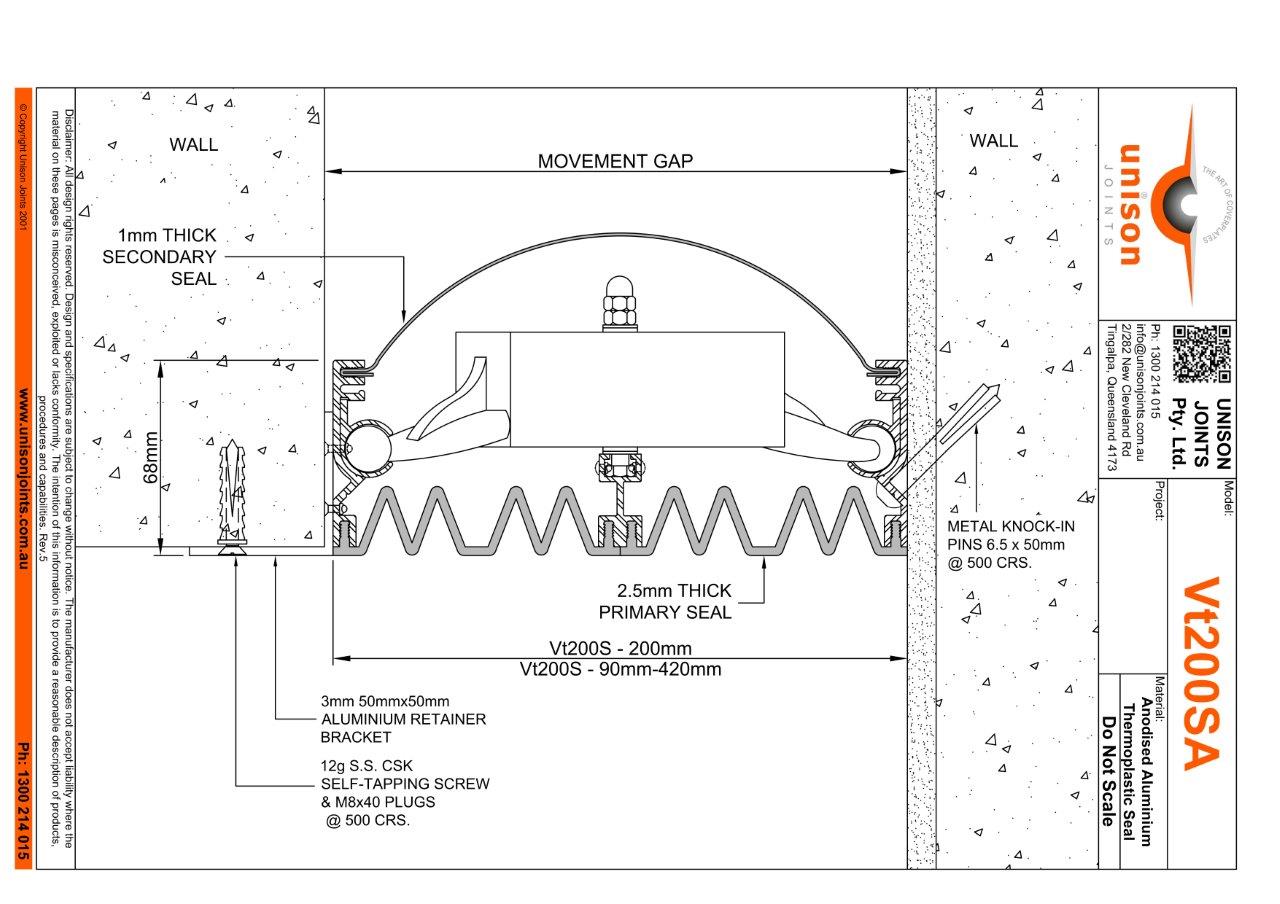

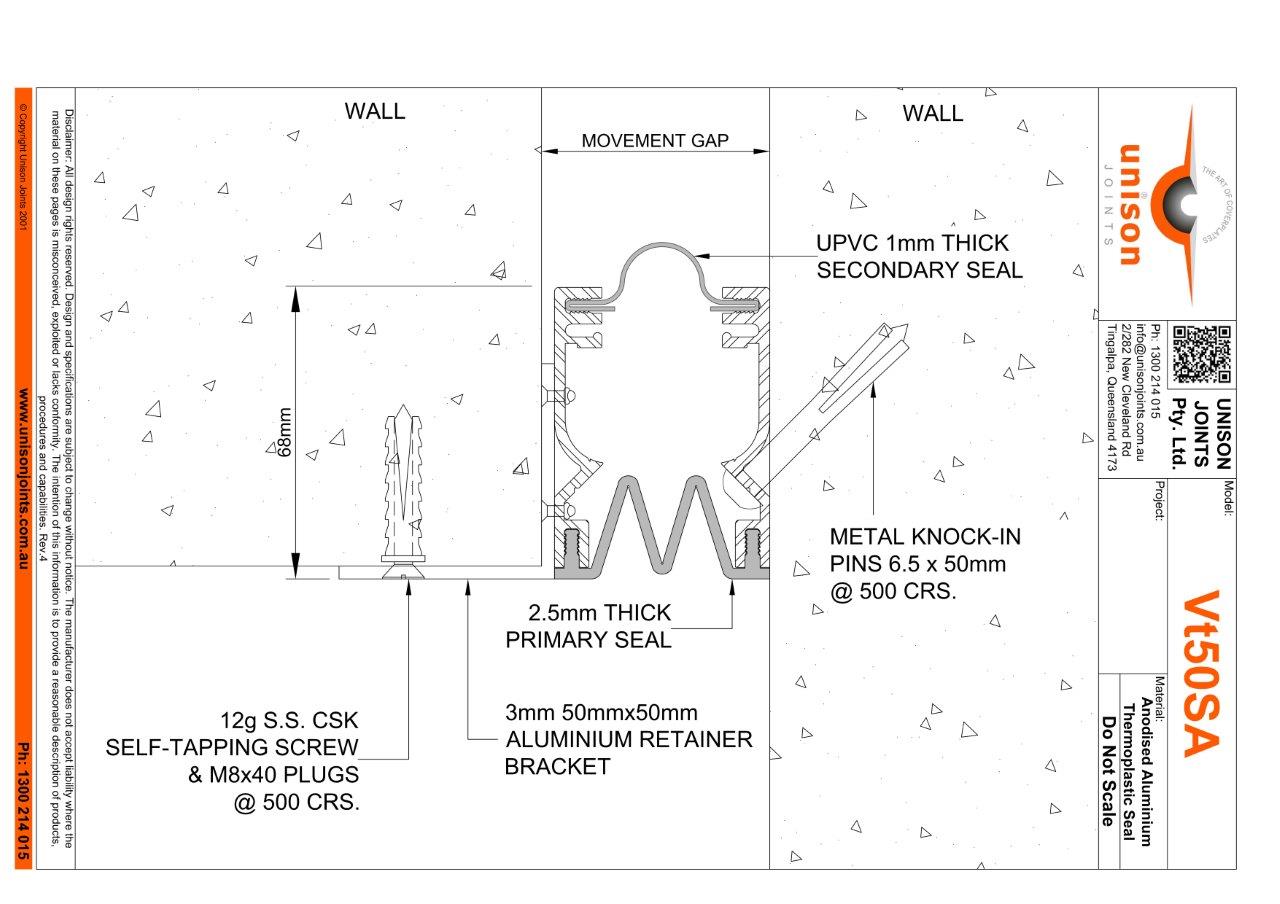

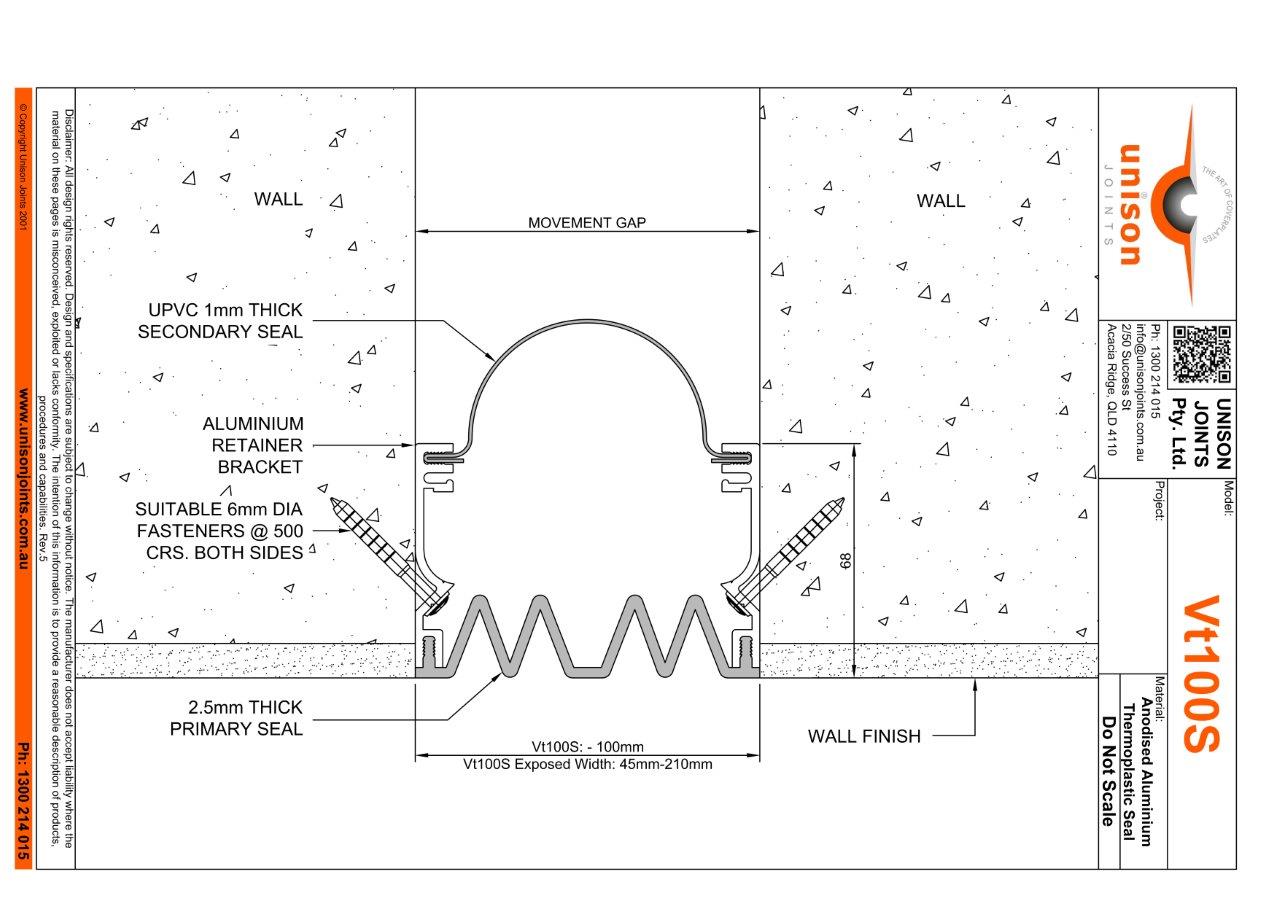

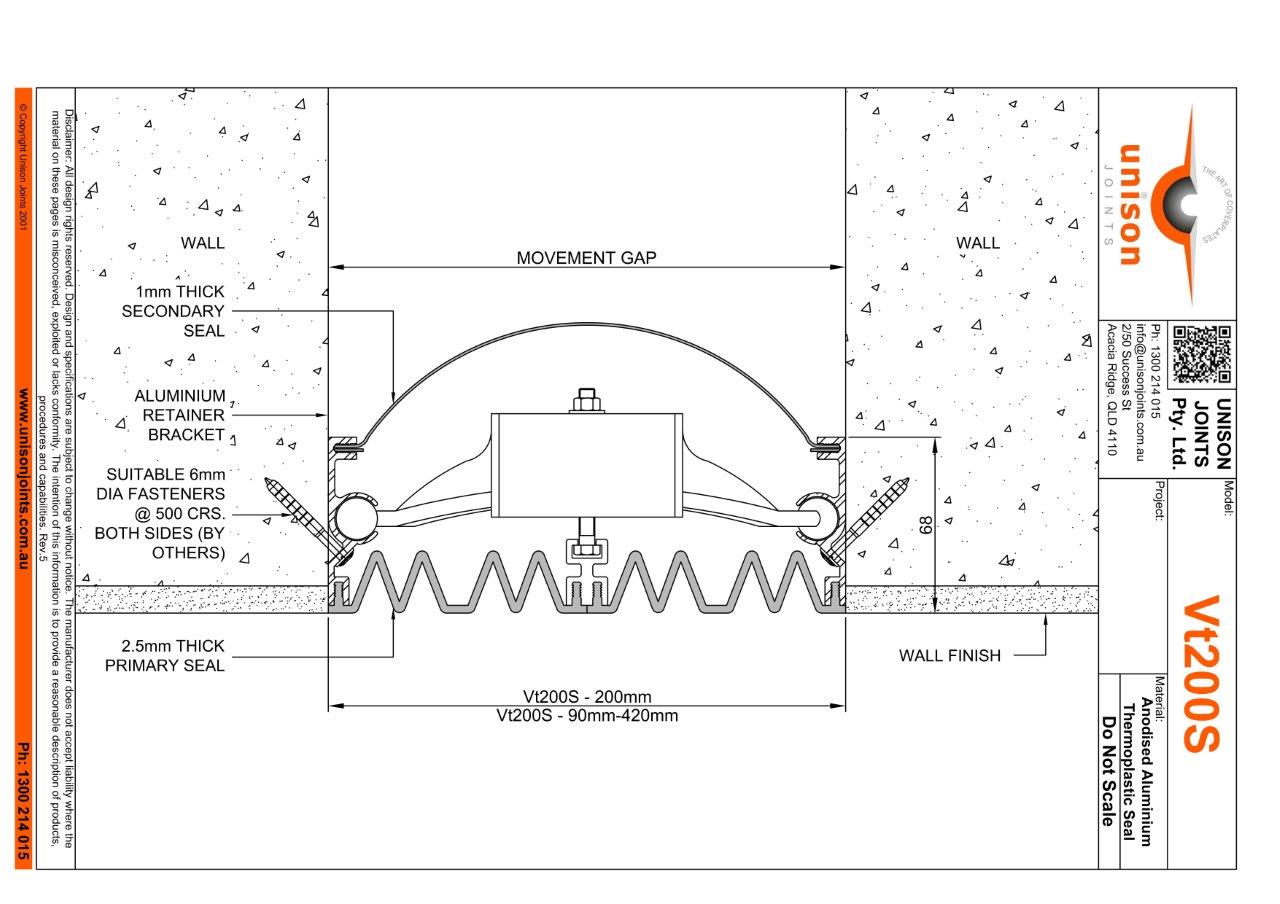

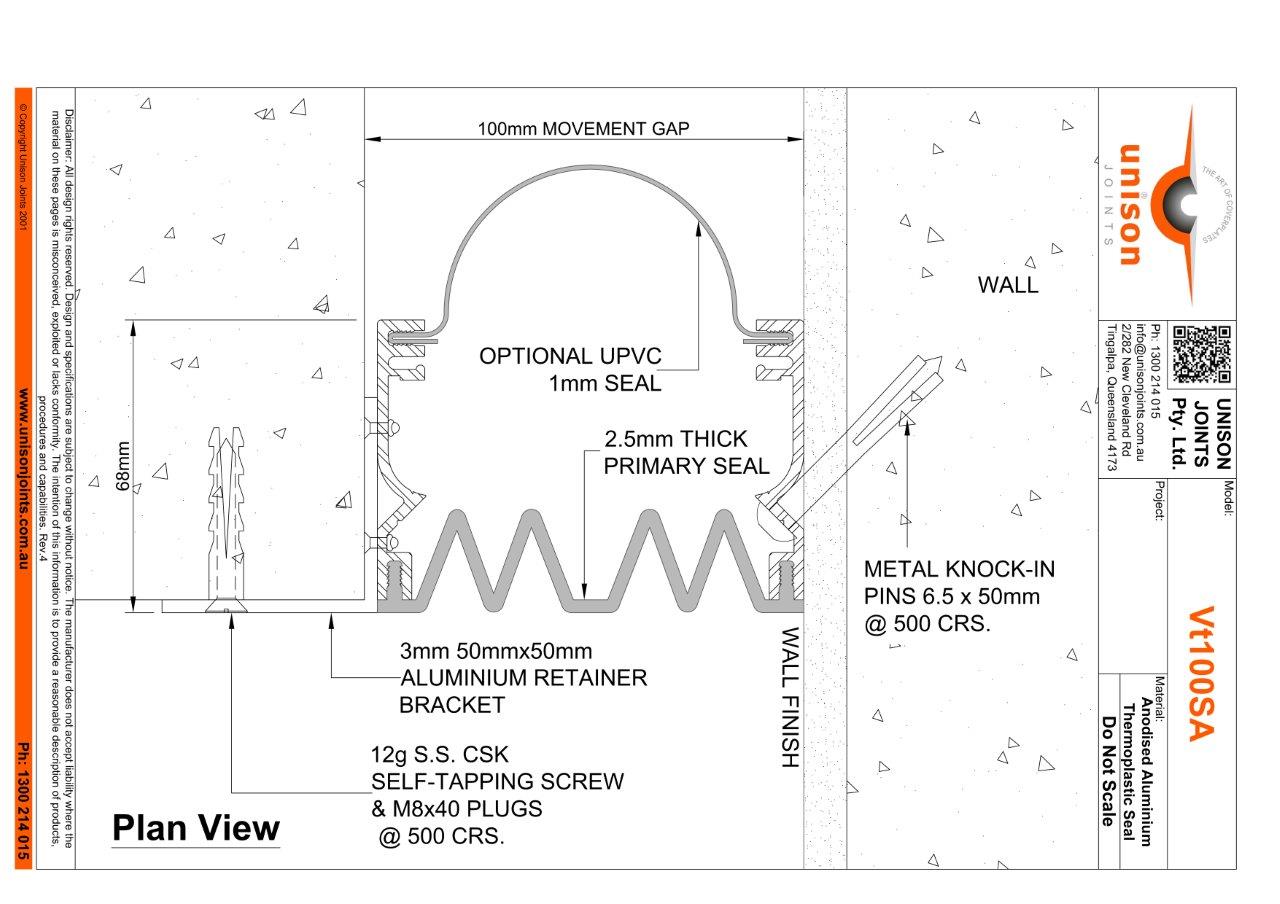

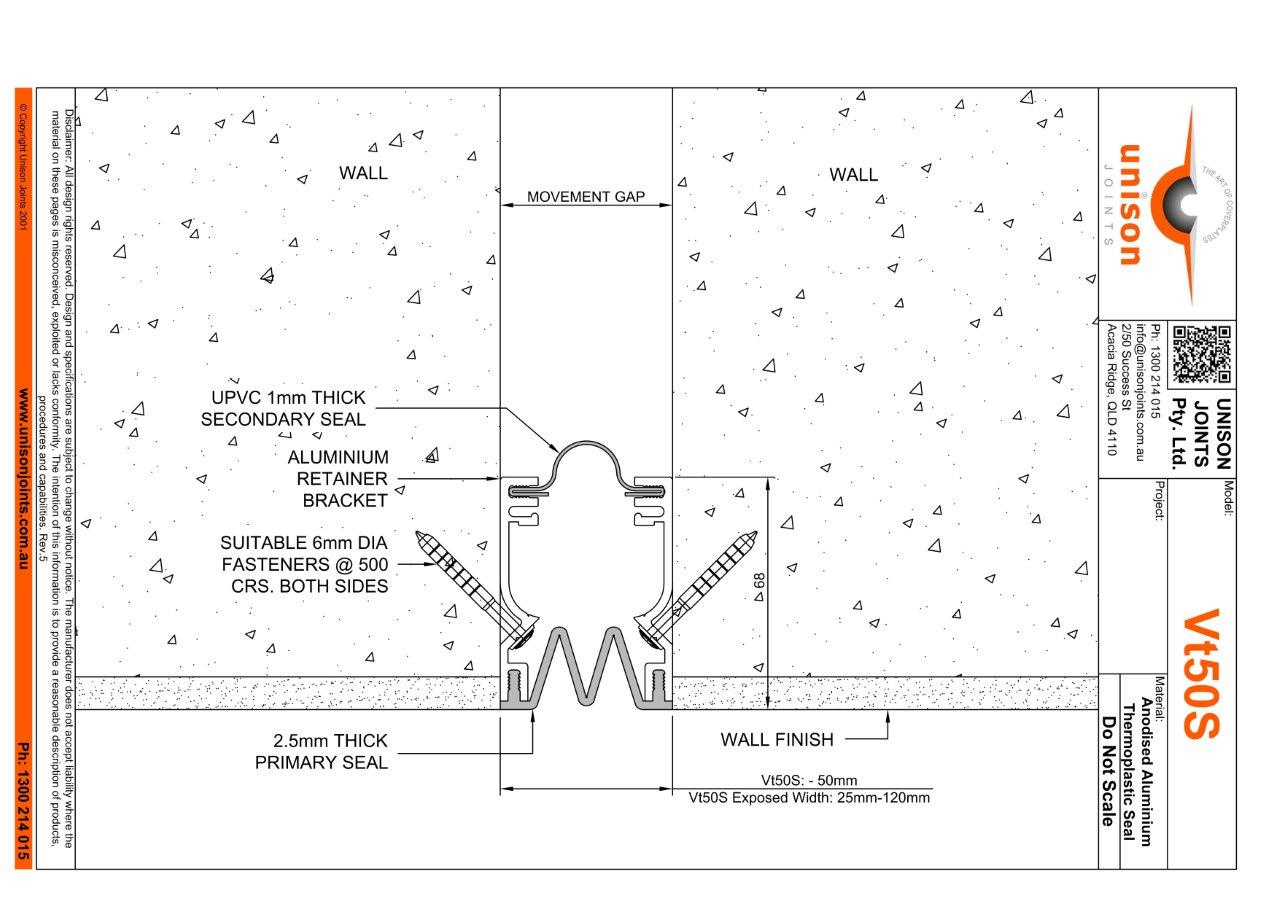

Detail Drawings

Multi Directional

Water Resistant

Seismic
Performance
- Facade Joint
- Santoprene primary seal
- Optional secondary waterproof seal
- UV stable
- Colour range available
Standard Finish
Anodised
Length
4.8m
