Tile Inlay Low Profile Concealed Coverplate Expansion Joint

Dz T

This coverplate system is designed to house floor-finishes up to 16mm thick. The installed system presents minimal visual impact. Traditional recessed-coverplate EJ systems are quite deep and wide. They need large concrete rebates which can be difficult to achieve. DzT requires a substantially smaller concrete recess. It can house a range of floor finishes, and accommodates substantial movement. Suitable applications are tiles, terrazite, vinyl, carpet and epoxy floors… in buildings such as convention centres, shopping malls, airport terminals, hotels, museums. The system is supplied assembled.

Indoor and Outdoor
Trolley Safe
Multi Directional
Minimal Visibility
P3 Slip Resistance Rating

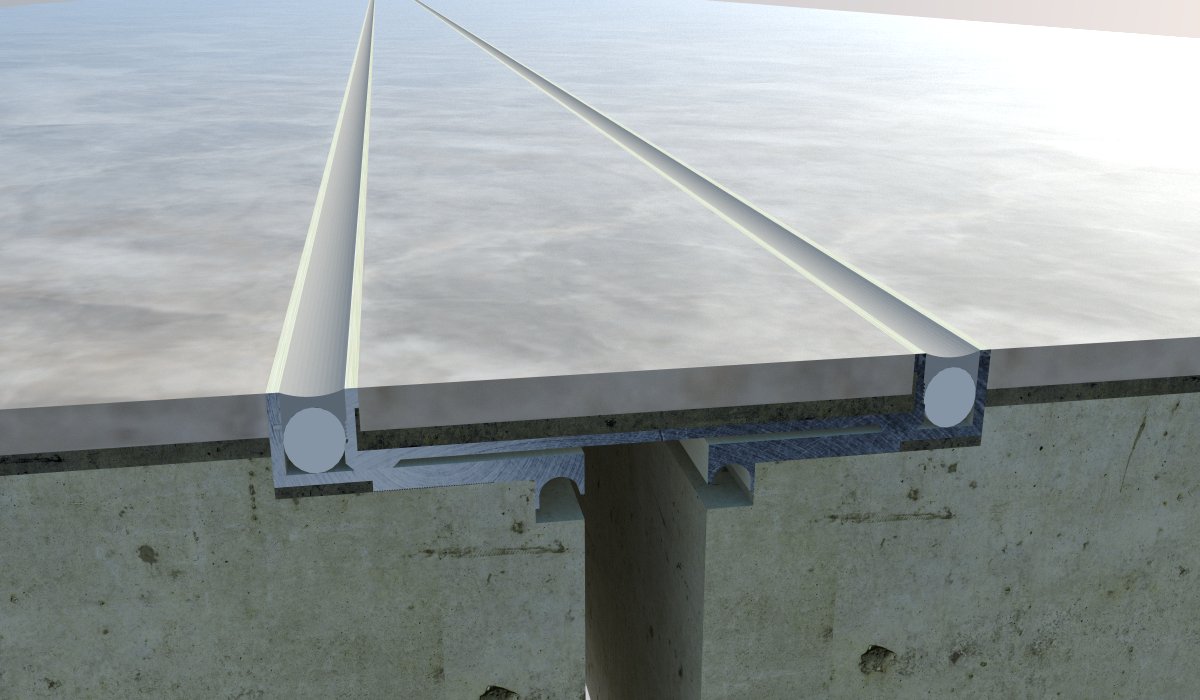

Illustrations

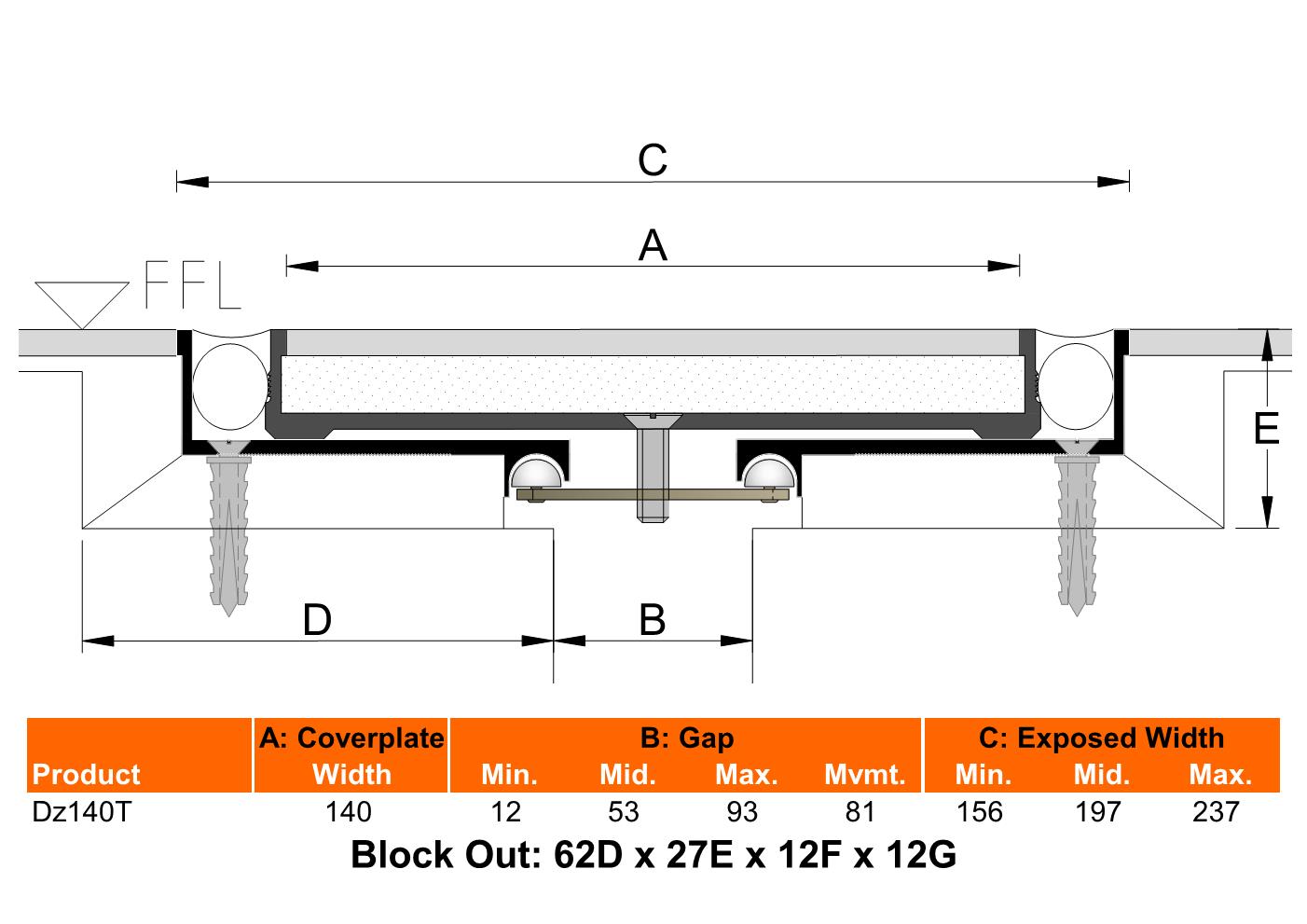

Typical Dimensions

Performance
Multi Directional
Minimal Visibility
P3 Slip Resistance Rating

Performance

  • Thermal and shrinkage movement
  • Concealed fixings
  • Minimum visual impact
  • High Capacity

Compatible Finishes

  • Tiles
  • Vinyl
  • Carpet
  • Epoxy
  • Terrazite
Material Options

Standard Finish

Anodised

Length

4.8m

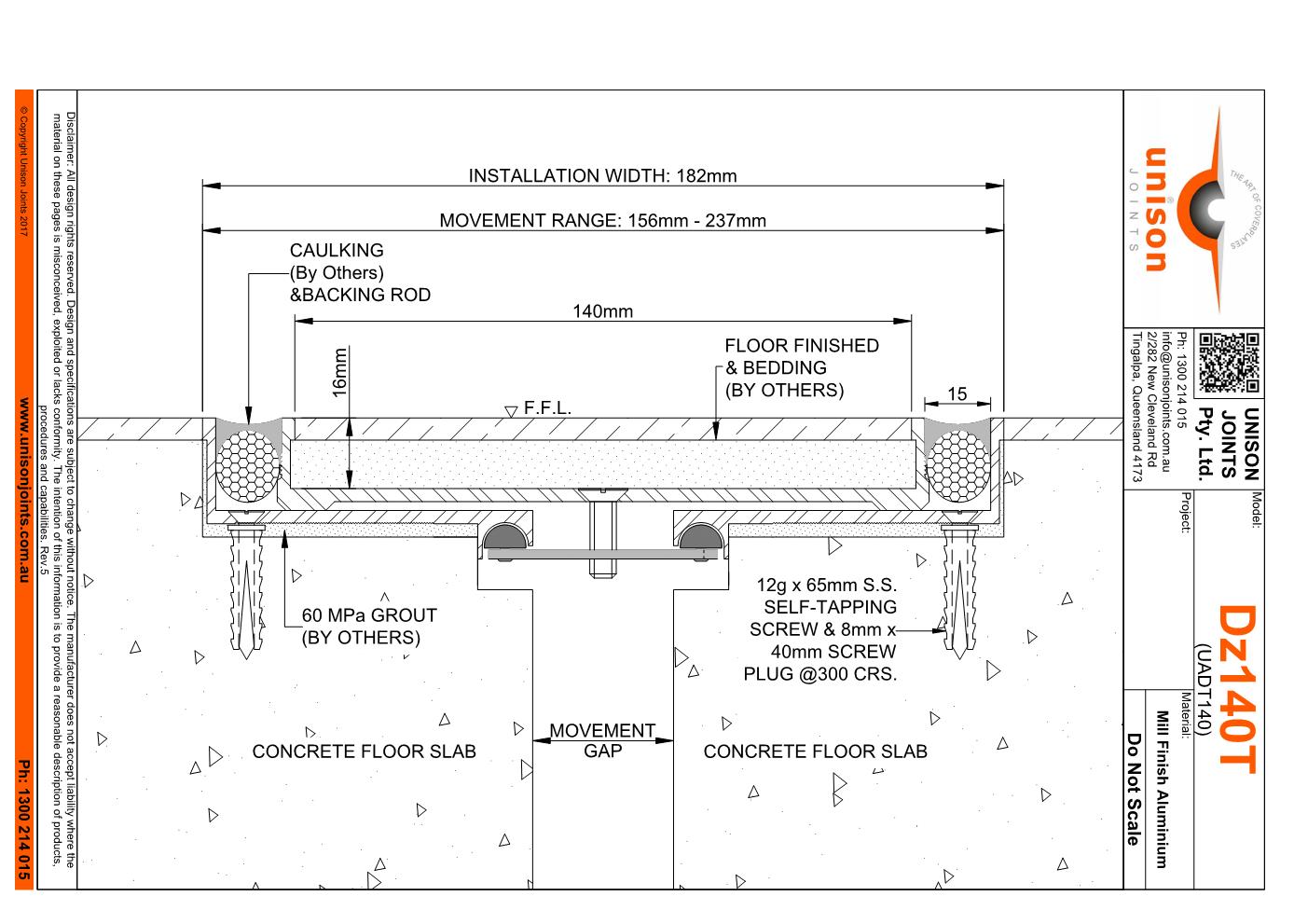

Detail Drawings

Standard

Dz140T
