Two-Piece Cost-Effective Slab-On-Ground Cover Strip

Dz MF

A 2 piece expansion joint cover system. It is intended for slab-on-ground applications. The DzMF is widely used in supermarkets & department stores. It has a 3mm edge height for integration with vinyl/vinyl tiles, but can be packed or installed in rebates to allow for ceramic tiles or polished concrete floor finishes. DzMF is purpose designed for flush mounting which overcomes the horizontal impact issues of surface-mount systems.

Indoor
Trolley Safe
P3 Slip Resistance Rating

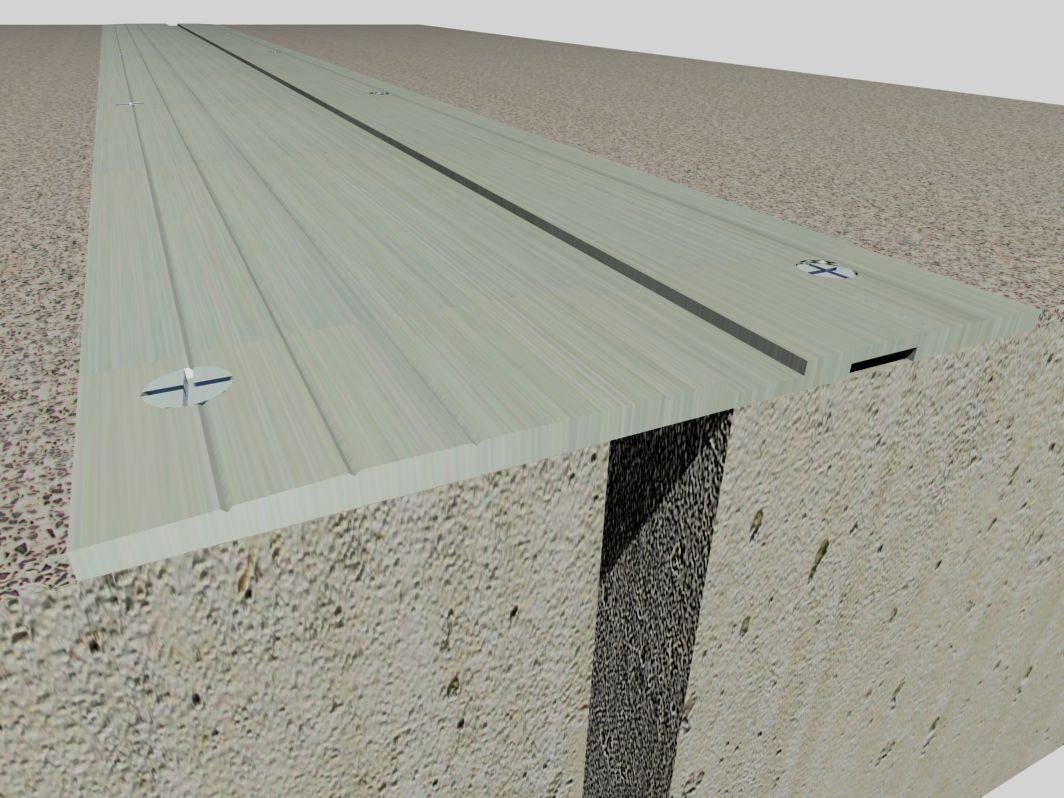

Illustrations

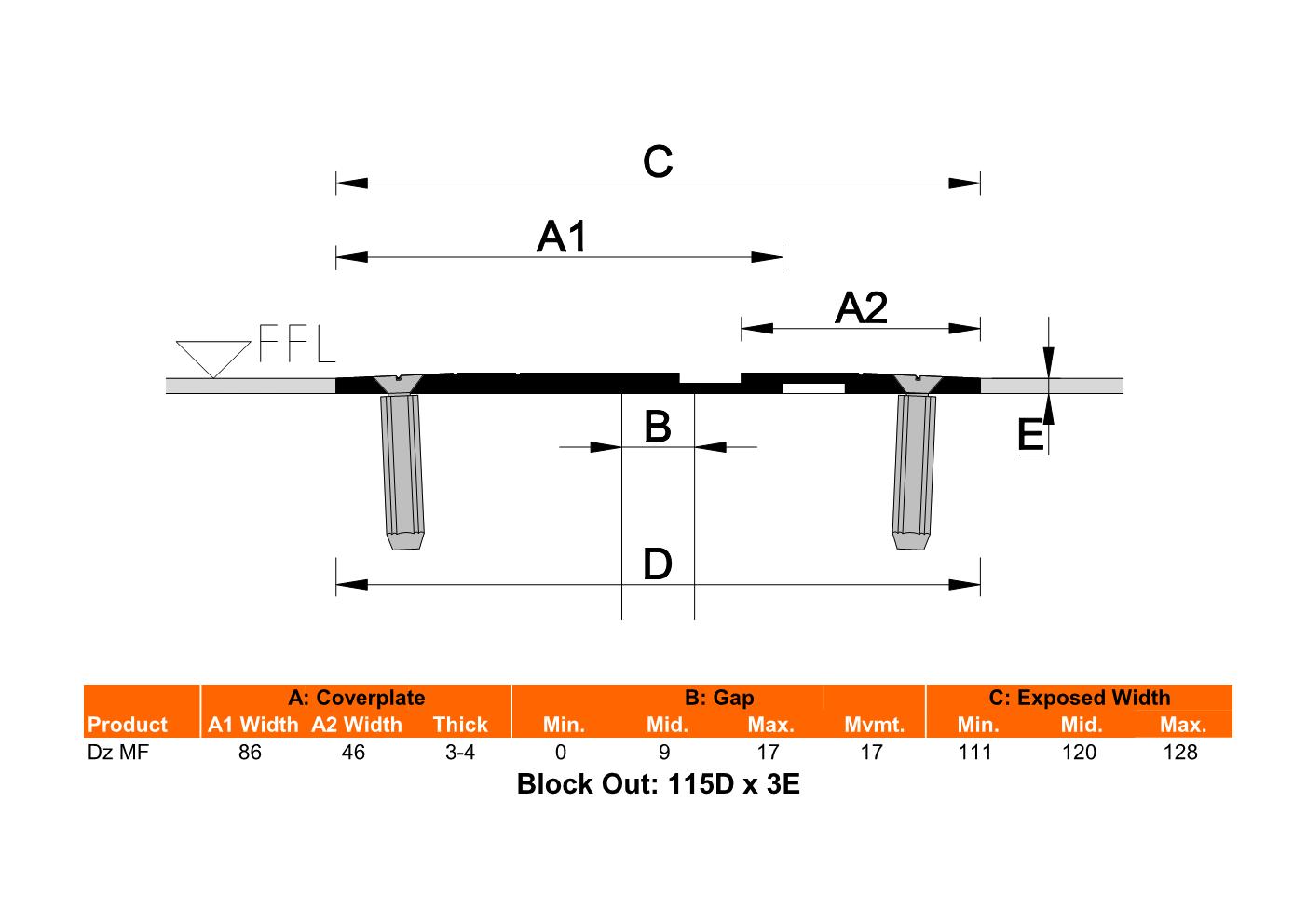

Typical Dimensions

Performance
P3 Slip Resistance Rating

Performance

  • Low profile / Retrofit
  • Flush mount
  • Smooth transaction

Compatible Finishes

  • Tiles
  • Vinyl
Material Options

Standard Finish

Anodised

Length

3.6m

Cover Plates

Clear Anodised

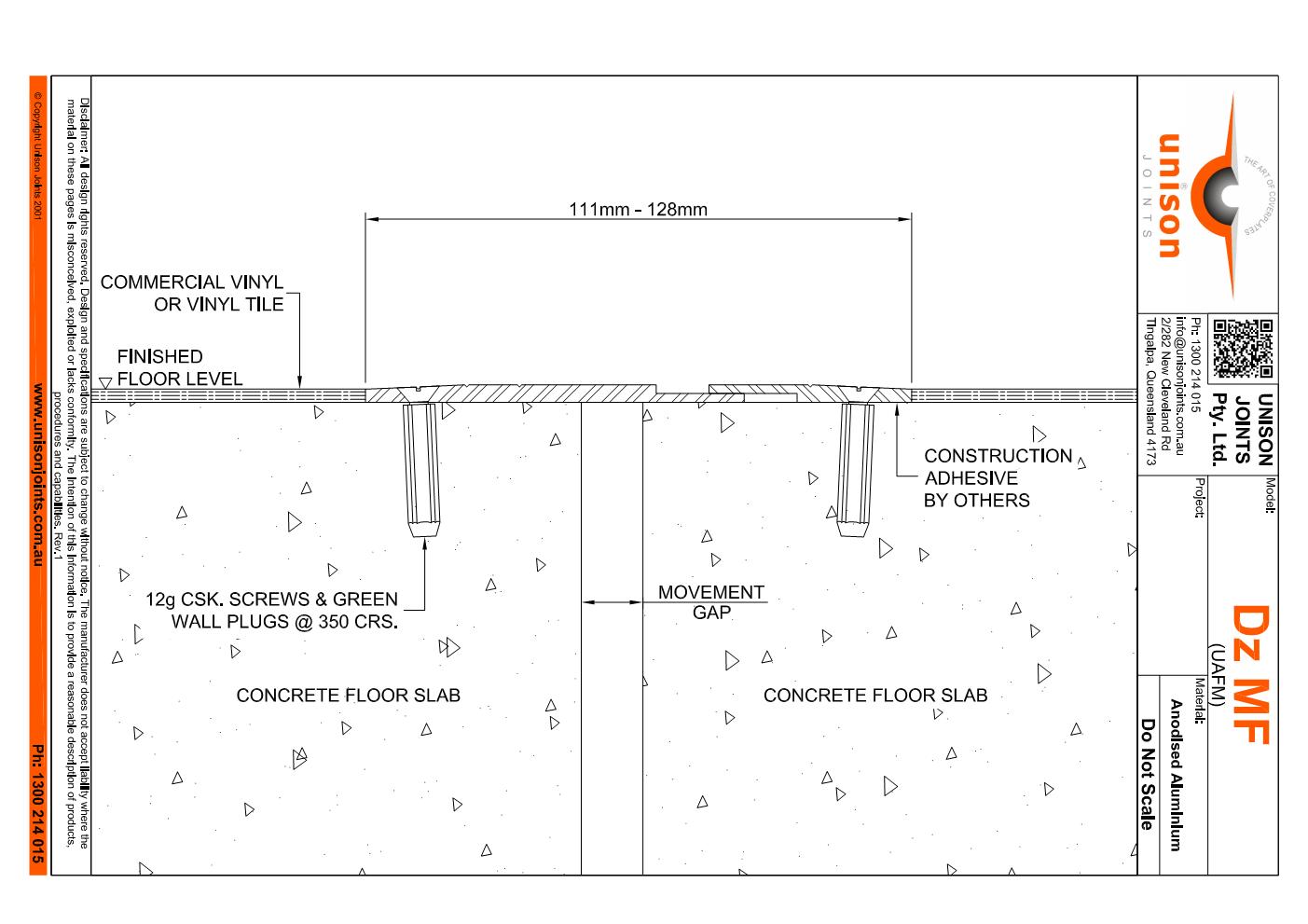

Detail Drawings

Standard

DzMF
