Watertight Expansion Joint Seal

Aquo P Plug

Our 100% Waterproof Seal for Water Holding Facilities

Aquo P®: This specially formulated polyethylene foam waterseal expansion joint is certified in conformance with AS/NZS 4020:2018 Contact with Drinking Water Test. Where traditional waterseals leak (at junctions and upturns), Aquo P® uses simple, quality welding technology. Aquo P® has UV inhibitors for longevity and when correctly installed the system provides a 100% waterproof expansion joint seal. The Aquo P® Plug has been tested under a 10 metre head of water and requires no backing in the form of caulking or similar to support its pressure restraint. Aquo P® also provides pressure resistance bidirectionally. It is ideal for water holding facilities and replacing problematic glands on expansion joints in swimming pools. Aquo P® is manufactured and cut-to-size from sheets of specially formulated foam. The process is carried out at Unison’s Brisbane facility where the sheets are stocked. Lead times are dramatically improved against extruded seals, as size variants are not required.

Outdoor
Car Park
Pools
Potable Water
Dams
Waterproof Decks
Heavy Vehicle
Multi Directional
Water Proof
Seismic
Minimal Visibility
Noise Barrier

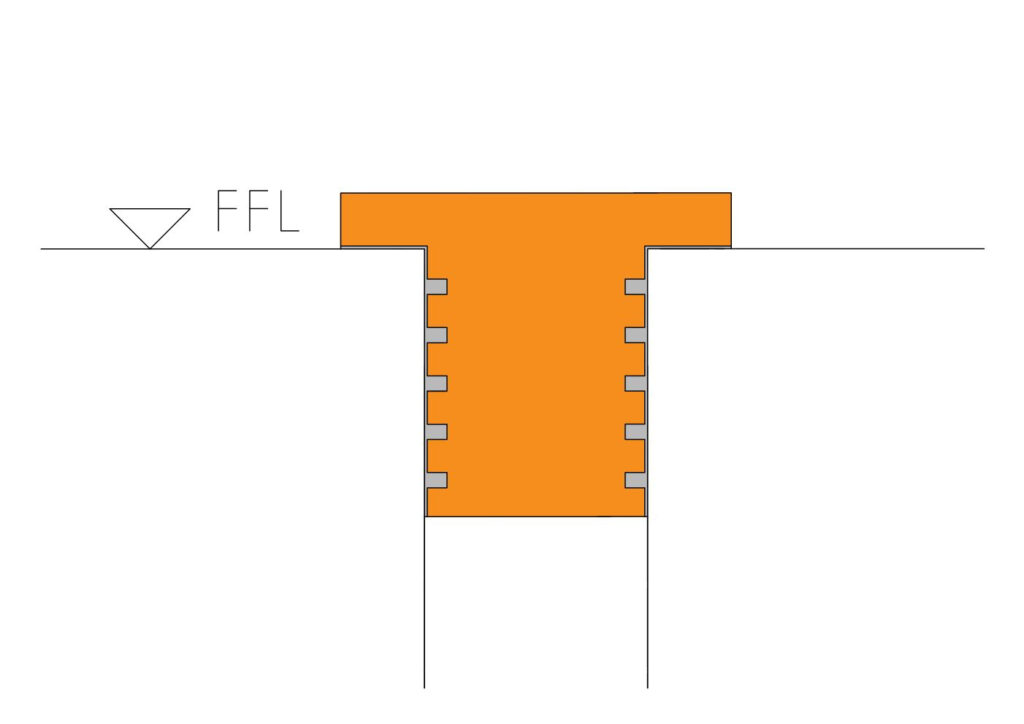

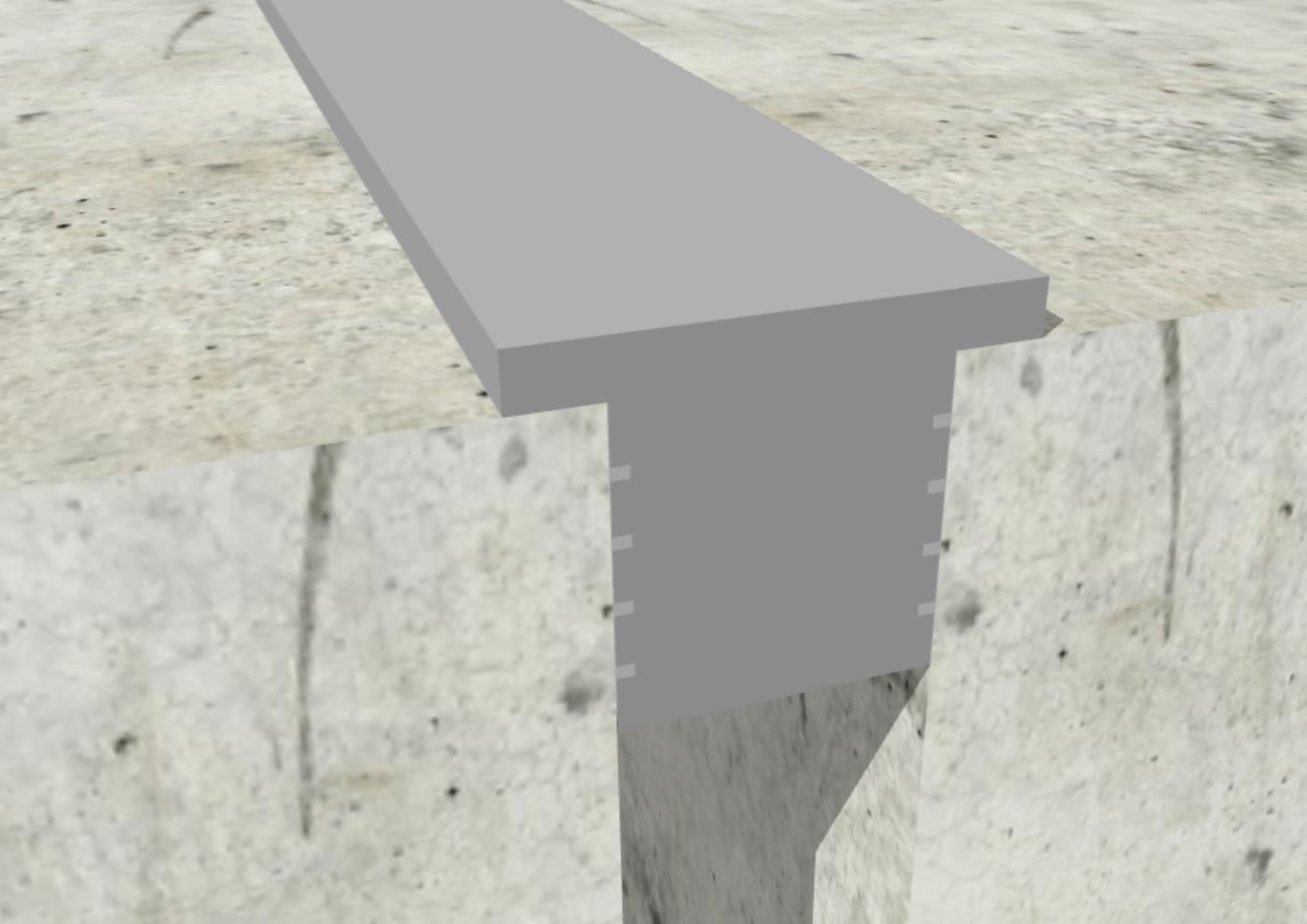

Illustrations

Typical Dimensions

Performance
Multi Directional
Water Proof
Seismic
Minimal Visibility
Noise Barrier

Performance

  • UV stable
  • High movement range
  • 100% waterproof seal
  • Conforms AS/NZS 4020:2018
  • Approximately ±50% Gap Movement
  • 80% Shear Movement (Gap size)
  • For installation into structural elements
  • Simple and effective upturn and junction welding

Compatible Finishes

  • Concrete
Material Options

Length

1m
